Precision Mold Components Supplier with 23+ Years of Experience
Custom Punch Pins Manufacturer in China
- 1pc MOQ for Custom Orders
- 2–5 Days Sample Lead Time
- 5–10 Mins Quick Quotation
- 5-10 Mins Quotation
- 100% Inspection | 24H Fast Delivery
±0.002mm Accuracy | Full Inspection Before Shipment
8000㎡ Factory • 100+ Machines • Fast Customization
Exported to 50+ Countries • Long-Term Partners Worldwide
Punch Display
Tailor-made punch pins for any specification, standard models ready to ship in 3 days.
High-precision T-type punch for metal stamping and mold processing, offering strong wear resistance and accurate positioning performance.
- Material: D2 / SKD11 / ASP23 high-speed tool steel
- Hardness: HRC 60–64 after heat treatment
- Tolerance: ±0.002mm for dimensional accuracy
- Surface Finish: Polished or TiN-coated for improved durability
- Application: Ideal for stamping dies and precision tooling assemblies
A-type punch designed for high-speed stamping molds, providing reliable performance, long lifespan, and precise alignment.
- Material: SKH51 / M2 / DC53
- Hardness: HRC 60–63, stable after heat treatment
- Surface Treatment: Polished, nitrided, or coated
- Precision: Consistent concentricity and straightness
- Use: Suitable for progressive stamping dies and automotive parts
Titanium-plated punch with superior surface hardness and wear resistance, extending tool life and preventing galling during stamping.
- Coating Type: TiN / TiAlN / CrN based on application
- Hardness: Surface hardness up to HRC 70
- Advantages: High corrosion resistance and smoother ejection
- Material: D2 / SKH51 / Carbide base
- Use: Recommended for stainless steel and high-strength material stamping
Custom-made special-shaped punch designed according to drawings or samples, suitable for non-standard mold structures and complex forming needs.
- Customization: Produced based on customer drawing and dimension
- Material Options: D2, DC53, SKD61, tungsten carbide
- Precision: ±0.002mm tolerance for critical shapes
- Surface Treatment: PVD / TiCN / TiAlN coating available
- Application: Used in special stamping, forming, and precision mold parts
Precision inspection punch designed for dimensional testing and mold alignment, ensuring high accuracy and repeatability in quality control applications.
- Material: High-speed steel or carbide for excellent stability
- Hardness: HRC 58–62 for long service life
- Tolerance: ±0.002mm precision to ensure measurement consistency
- Surface Treatment: Fine polishing for smooth contact surface
- Application: Used for mold inspection, alignment, and dimensional verification
Durable hexagonal punch engineered for efficient metal forming and shaping, offering enhanced torque resistance and anti-slipping structure.
- Material: SKH51 / M2 / DC53 for superior strength
- Shape: Hexagonal body for stable positioning and easy installation
- Hardness: HRC 60–64 to resist wear and deformation
- Surface Finish: Polished or nitrided for improved surface hardness
- Application: Suitable for stamping hex holes and precision forming operations
Guide punch designed with alignment accuracy in mind, ensuring precise positioning and smooth motion within guide bush systems.
- Material: SKD61 / H13 with high temperature resistance
- Hardness: HRC 48–52 for balance between strength and flexibility
- Surface Treatment: Nitrided or TiN coated for extended lifespan
- Precision: ±0.003mm for accurate guiding performance
- Application: Used with guide bushings in stamping or injection molds
Precision oval punch designed for forming or punching oval-shaped holes, providing excellent repeatability and dimensional consistency.
- Material: SKH9 / M42 for high wear resistance
- Hardness: HRC 60–63 for long tool life
- Tolerance: ±0.002mm for accurate oval dimension
- Surface Finish: Polished to reduce adhesion and friction
- Application: Used in stamping dies for automotive, electronics, and hardware industries
Need Detailed Specs for Guide Posts & Bushings?
Looking for High-Performance Ejector Pins?
Factory Strength & Advanced Machining

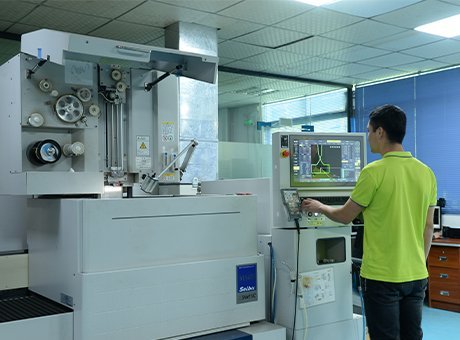

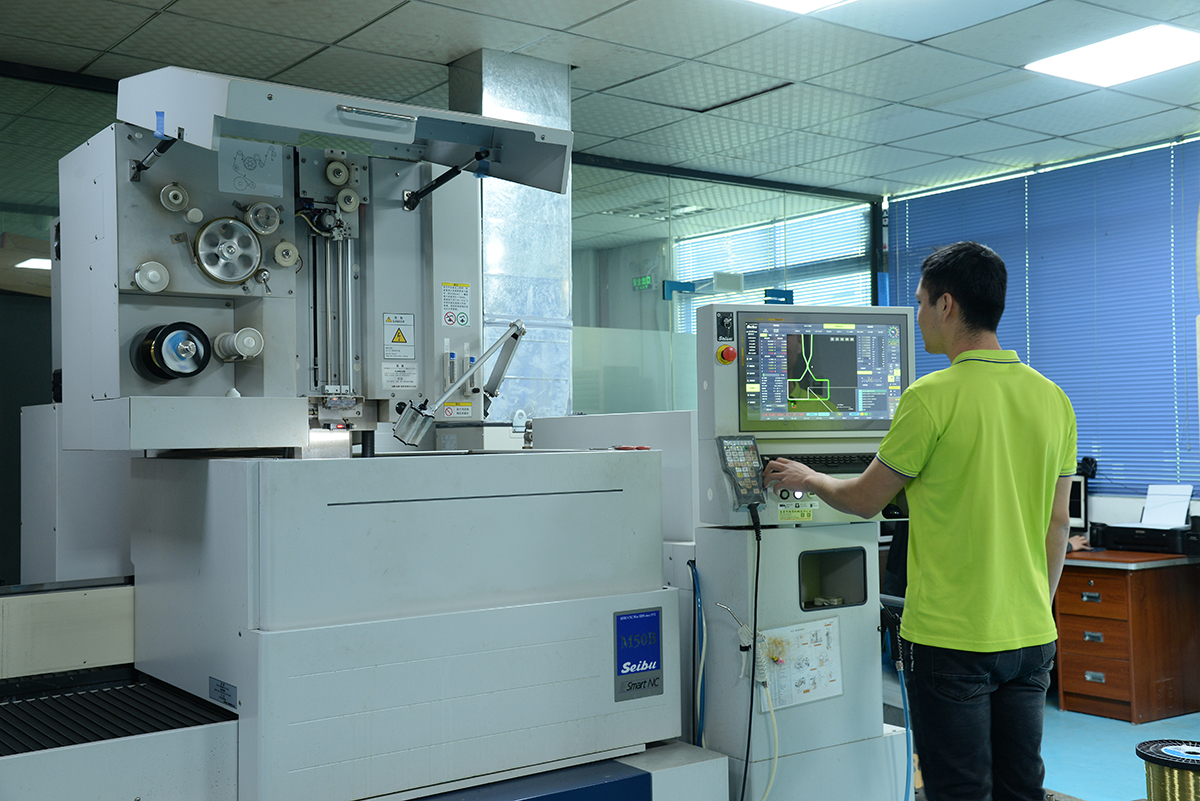

See how our precision punch pins are made — powered by advanced Wire EDM, 5-Axis CNC, and Grinding machines for ±0.002 mm accuracy.
Why Choose HTX Factory
Over 23 years of OEM & ODM experience — trusted by 8,000+ partners worldwide.
1️⃣ Expert Engineering Support
1. 15+ Years Experience, 24/7 Support
2. Optimize Drawing & Material for Durability
3. Early Design for Precision & Strength
4. Fast Quote 10mins, Samples 2–5 Days
5. 1-on-1 Customization, 4H Urgent Sample
6. Free Custom LOGO & Label Service
7. Complete Tech Files & Digital Catalog
2️⃣ Strict Quality & Precision Control
1. 86 Experts + 20 QC Team
2. ±0.002mm Precision, 100% Inspection
3. Imported Steel, +20% Lifespan
4. Free Replacement for Quality Issues
5. Bulk ≠ Sample? Free Replacement
6. Not As Ordered? Free & Fast Replace
7. Pin Break? 1H Quick Solution
3️⃣ Fast & Flexible Service Guarantee
1. MOQ 1pc, Rush Order Priority
2. Bulk Delivery in 3–7 Days
3. Real-Time Production Tracking
4. 1h Fast Response, 24h Solution
5. Free LOGO & Package Customization
6. Lead Time Shortened by 30%
7. 7-Day After-Sales Follow-Up
4️⃣ Reliable Partnership Assurance
1. Full Compensation for Non-Human Issues
2. 7-Day After-Sales Follow-Up
3. Factory Direct, 10–20% Lower Price
4. Delay Compensation Guarantee
5. Confidentiality Agreement
6. Free Factory Visit & One-on-One Service
Punch Pin Customization

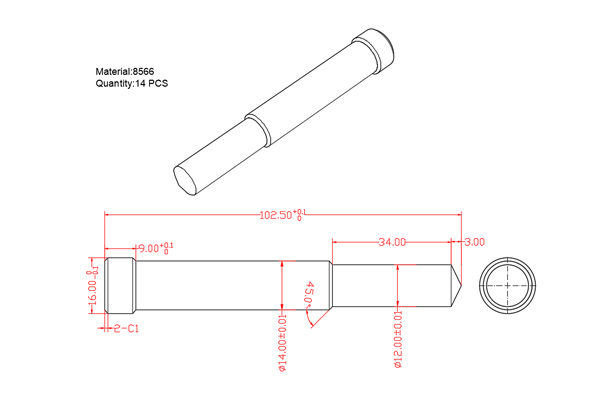

Support customized punch pin production based on customer 2D/3D drawings, samples, or specific requirements.
Fully Customizable
Custom Punch Pins for Your Precision Molds
- Material: D2 / SKD11 / DC53 / HSS / Tungsten carbide (Custom materials available)
- Head Type: Flat / Dome / Conical / Custom shapes
- Tolerance: ±0.002mm (Precision grinding available)
- Surface Treatment: Heat Treatment / TiN / TiAlN / Nitriding / Hard Chrome / Polishing
- Hardness: HRC 58–64 (According to customer needs)
- OEM Service: Custom sizes, drawings, and coatings accepted

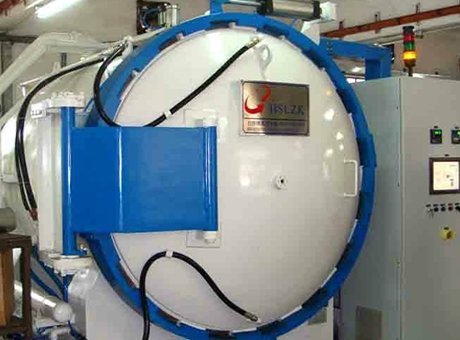

Advanced Surface Treatments
Enhance hardness, wear resistance, and lifespan with multiple finishing options including Heat Treatment, Polishing, TiN/TiAlN Coating, Hard Chrome Plating, Black Oxide, Nitriding, and more. All treatments available for precision mold and stamping punches.

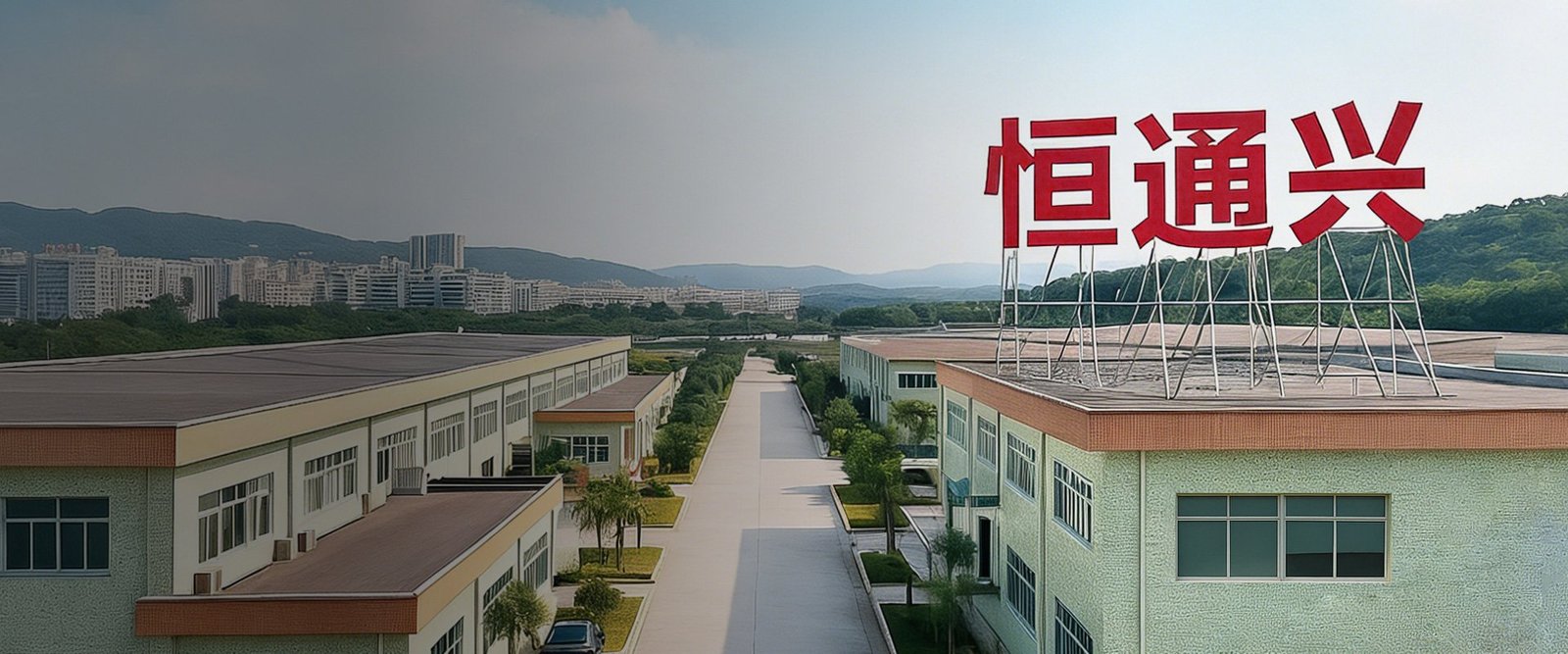

Our Factory
- Professional supplier for overseas stamping,injection molding,and die-casting parts manufacturers,mold makers,large equipment integrators,and service providers.
- 23+ years of experience in customized non-standard mold components OEM & ODM manufacturing.
- Over 8,000㎡ factory with 100+ imported Japanese machines.
- Daily capacity of 12,000+ pcs, bulk production delivered within 3–7 days (stable lead time).

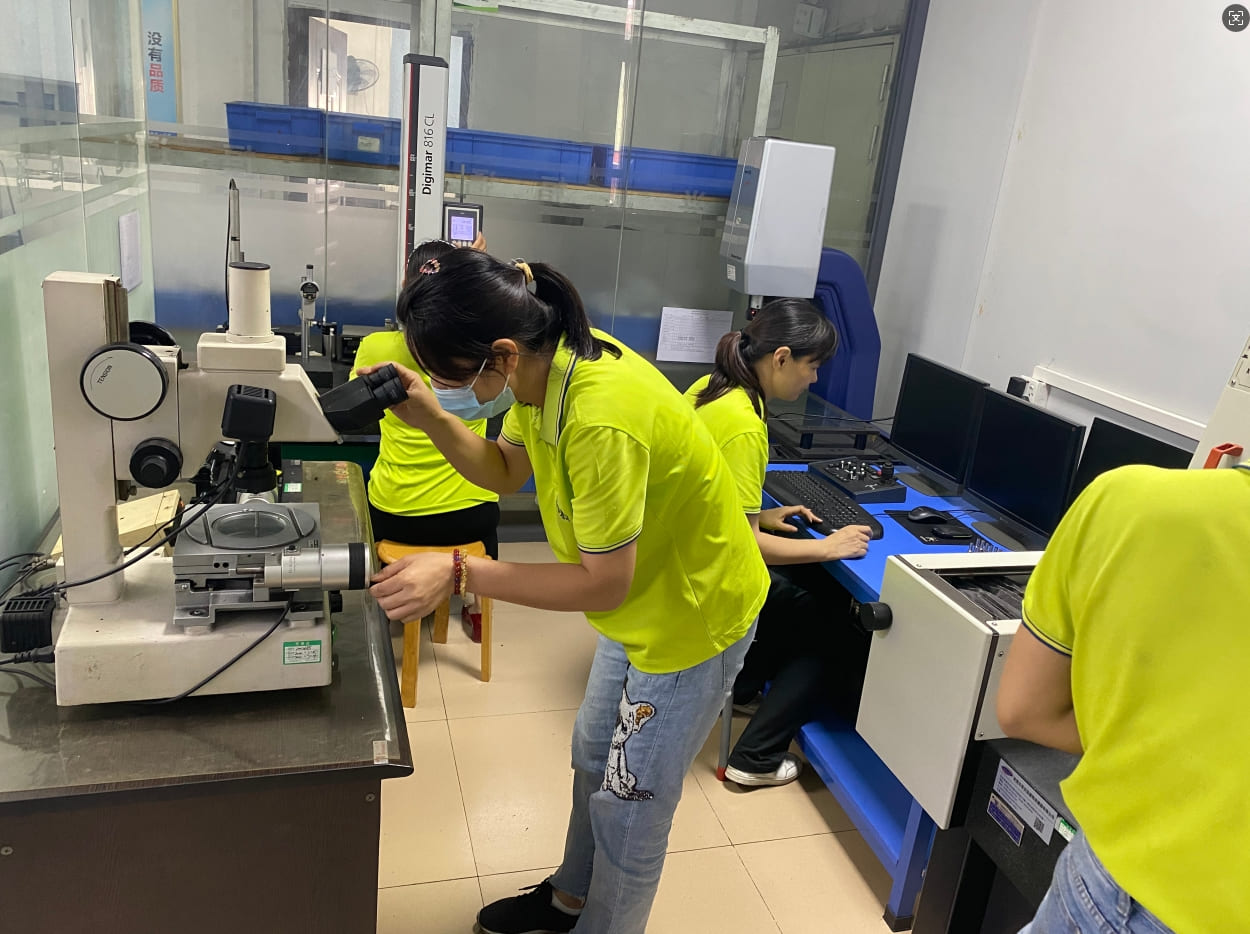

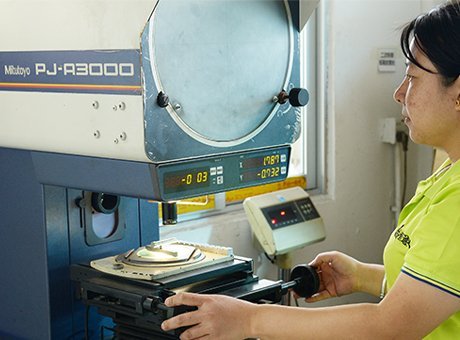

- 18+ professional testing devices (2.5D, CMM, Mitutoyo projector, optical microscope).
- 86+ technicians with over 10 years of industry experience.
- Sufficient stock of various material grades with stable pricing.
- ERP intelligent production scheduling management system.
- 9,000+ product categories serving 8,000+ companies.

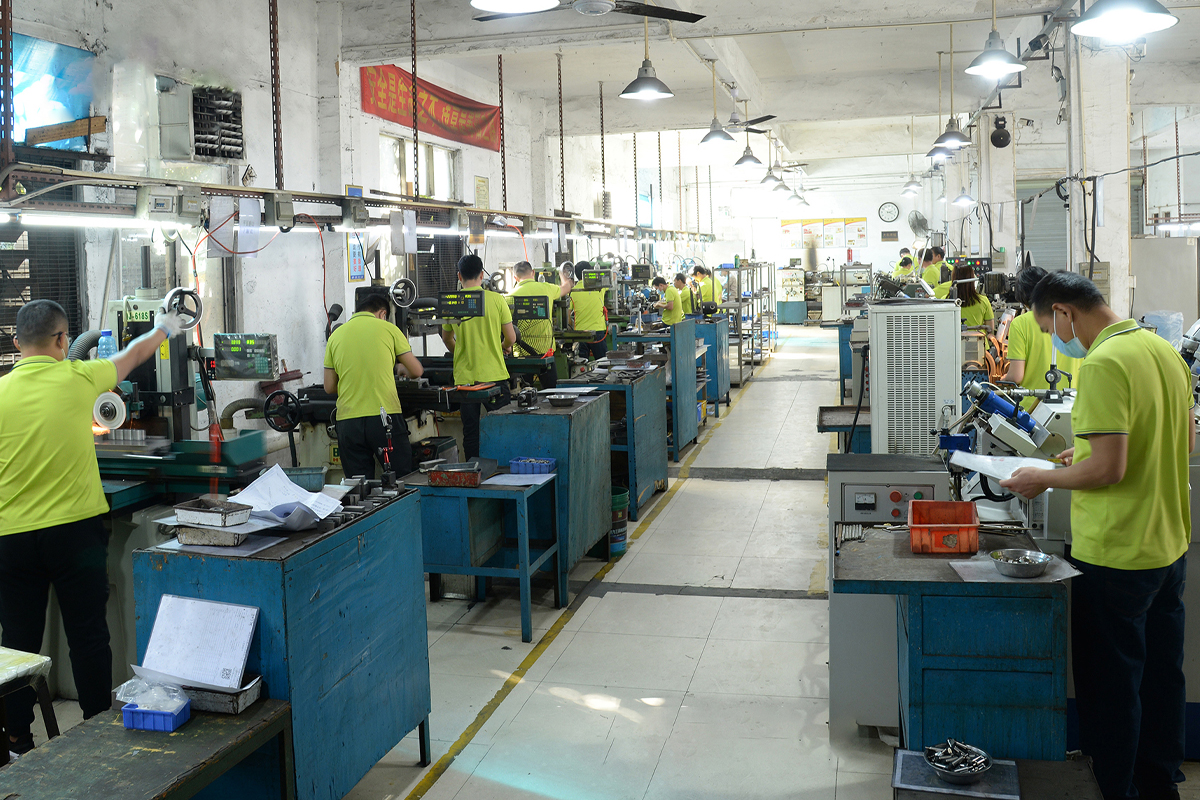

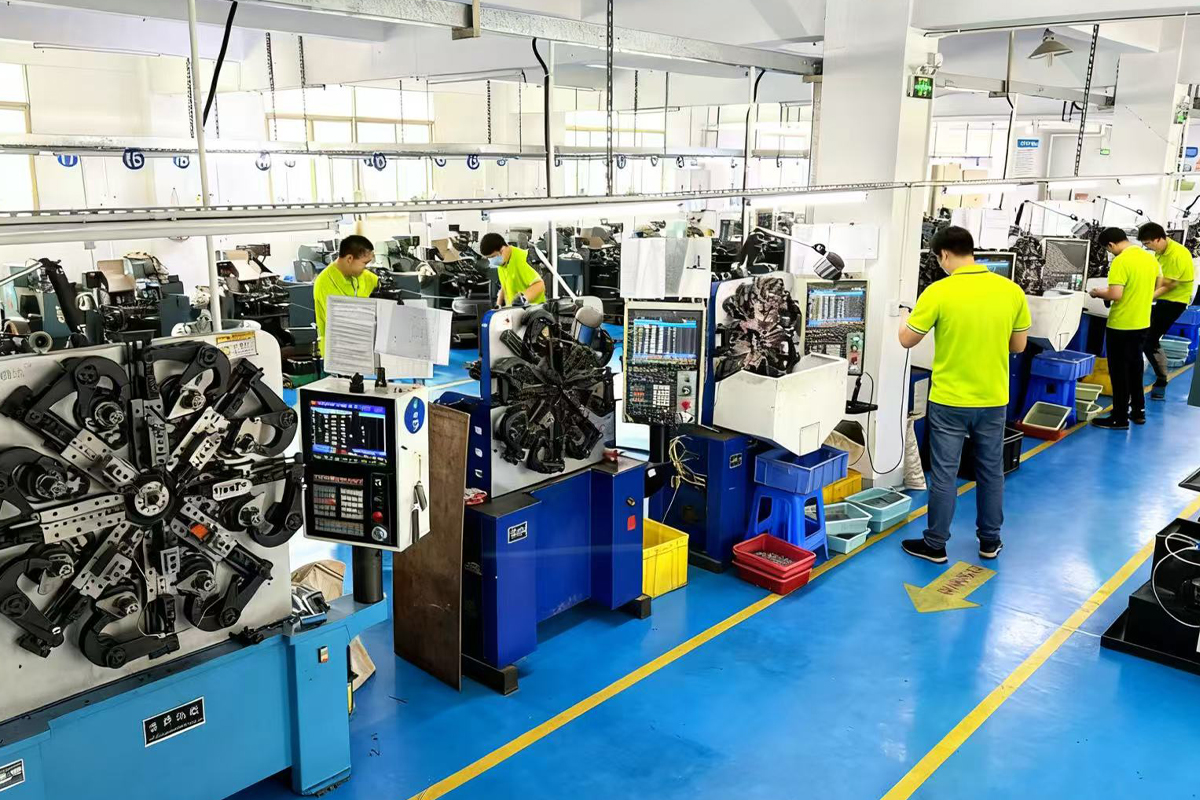

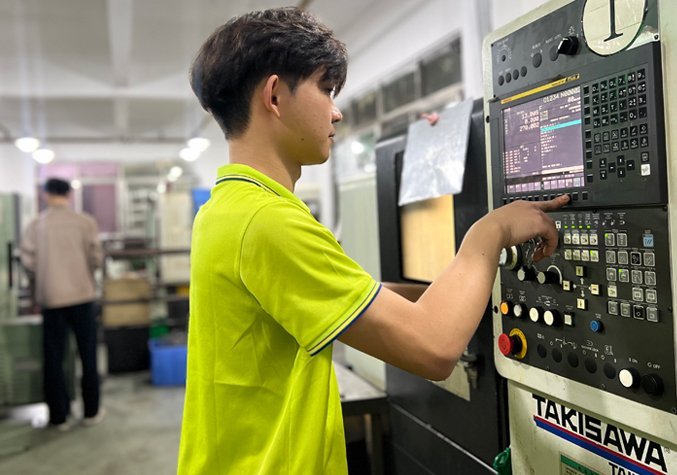

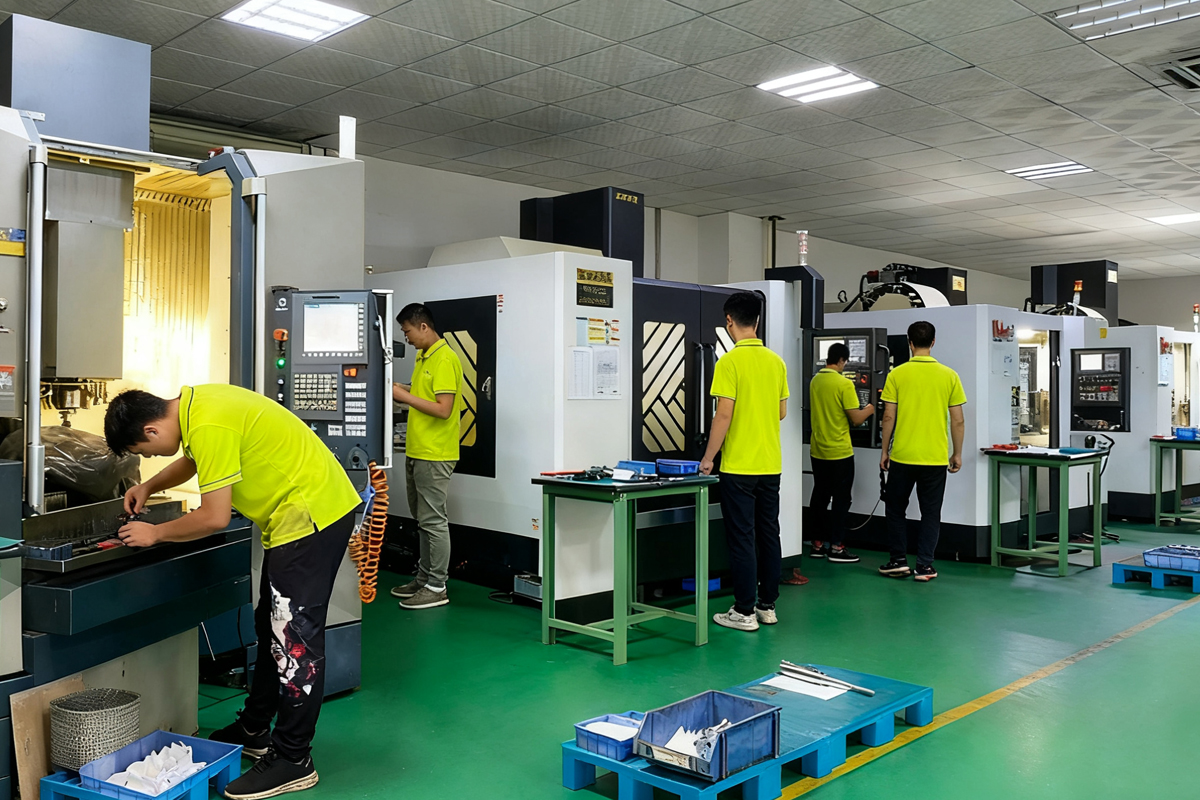

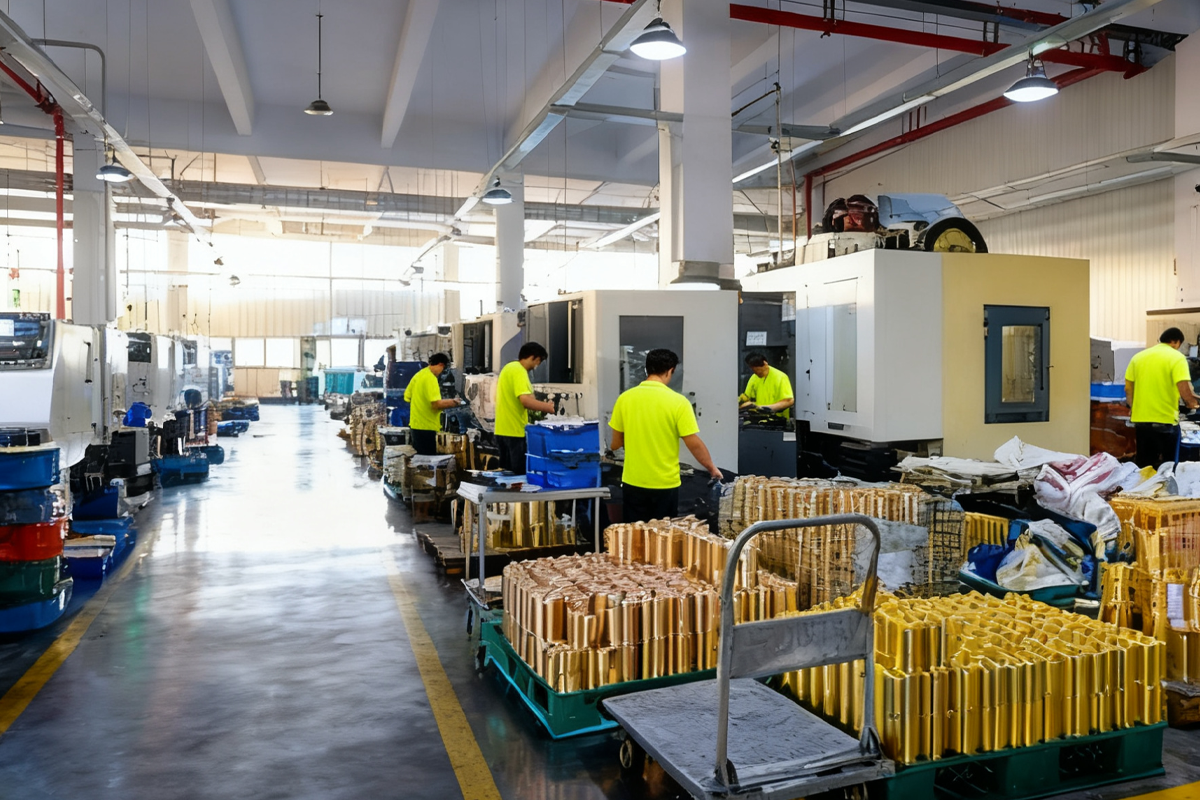

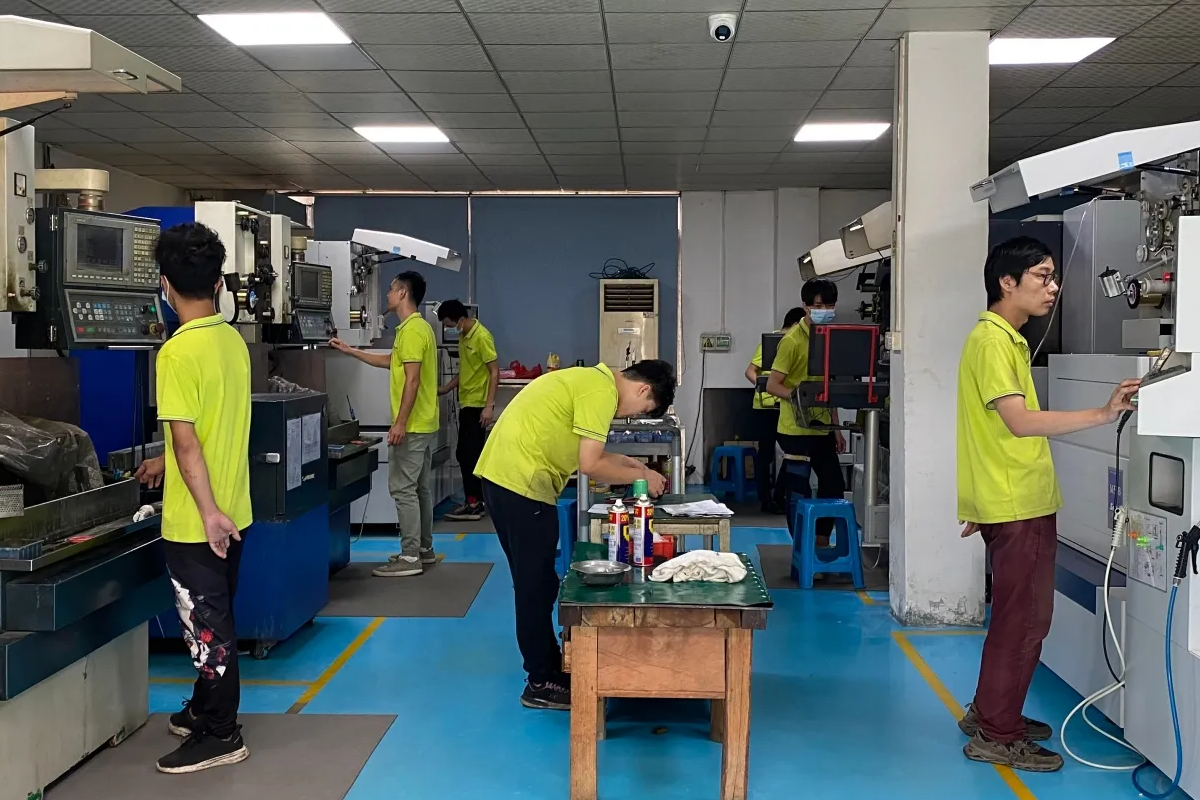

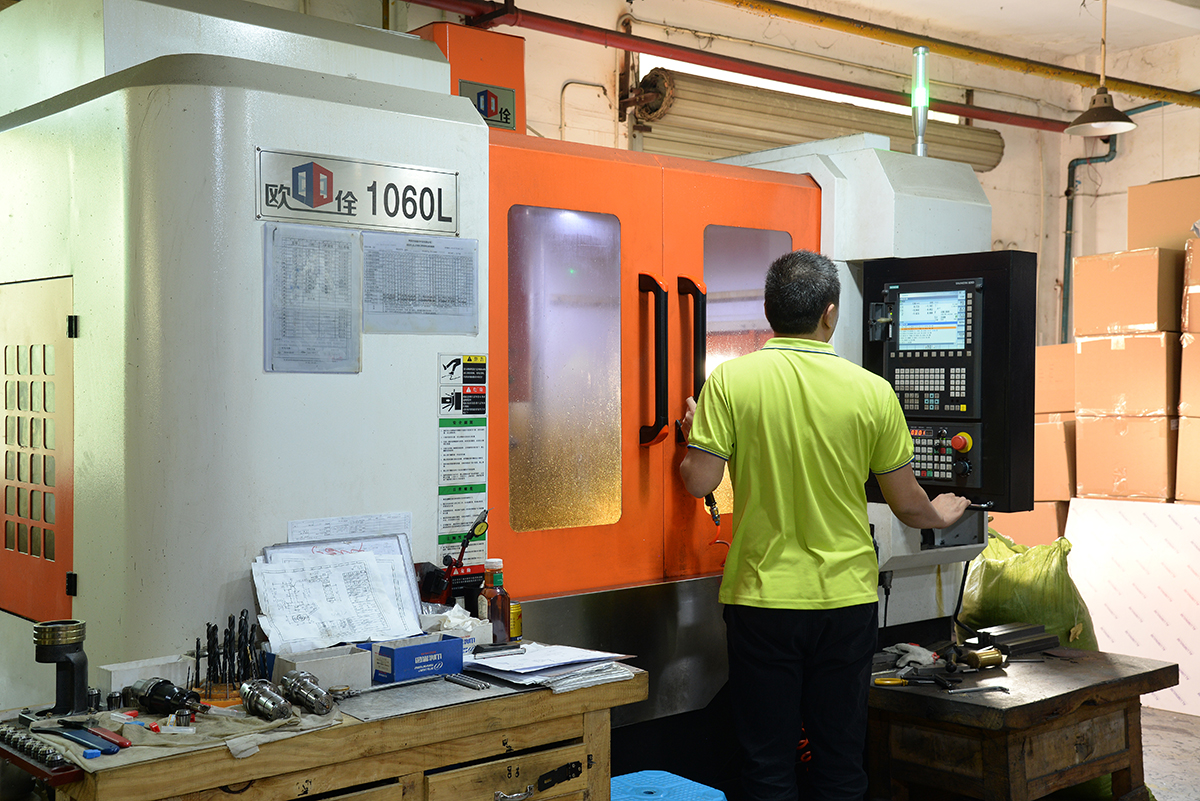

Our Production Workshop

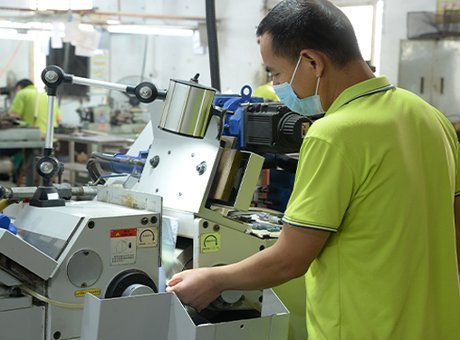

Equipped with advanced CNC, grinding, and polishing machines to ensure precision and consistency in every punch pin we produce.

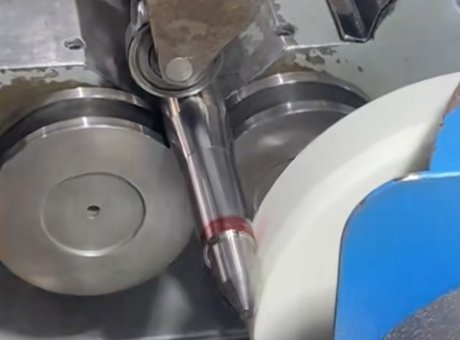

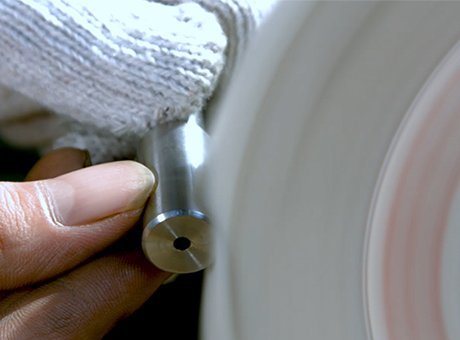

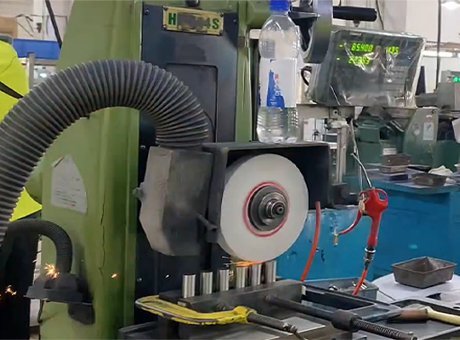

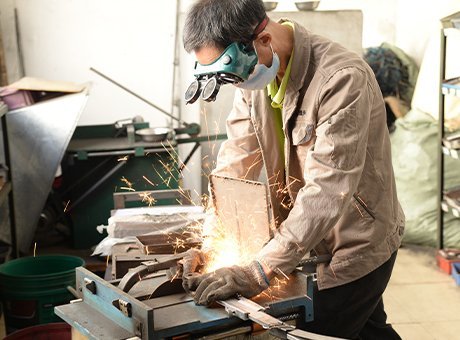

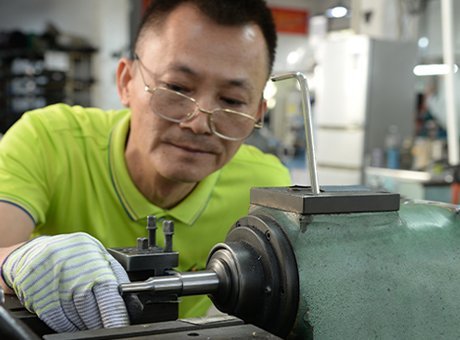

Manufacturing Process
From material selection to precision finishing, every step is engineered for accuracy and reliability.
Our Partner
Trusted by 50+ Global Partners • DuPont • BYD • Foxconn • Midea • Gree …

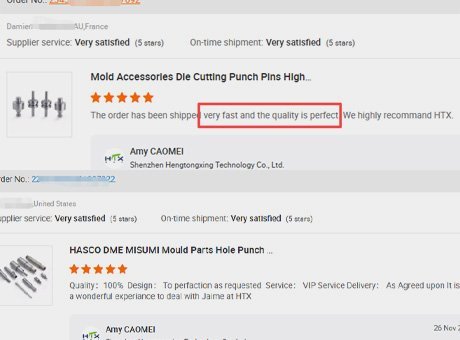

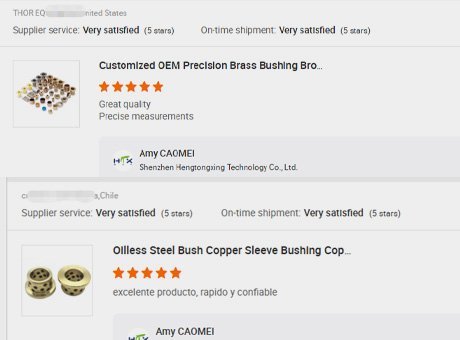

Our Customer
Certification and Patents
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
Yes, we specialize in OEM & non-standard punch pins. Please share your detailed drawing or sample for accurate quotation and feasibility confirmation.
Yes, we can produce according to your sample with precision tolerance control within ±0.002mm. Our inspection team uses CMM and projector to ensure accuracy.
Yes, small quantity custom orders are acceptable. We can produce according to your drawings and samples, ensuring the same quality as mass production.
Our regular lead time is about 3–7 working days for mass production after sample confirmation. We ensure stable delivery and strict quality control at every stage.
Yes, we provide free laser engraving for part numbers, logos, or customized codes before packaging. Please send your engraving details when confirming the order.
Of course. We can provide material certificates (SGS/ROHS) and full inspection reports upon request. Every pin is 100% inspected before shipment.
Talk Directly to the Factory — Get Samples Fast!
Skip the middleman, save your cost, and start your project faster with samples directly from our factory.
Request Your Sample — See Our Quality in Action!
Precision manufacturing, reliable quality, and fast delivery — just fill out the form to get started.
